2016 Ford F-150 Fuse & Relay

Currently shopping for
2016 Ford F-150
Change Vehicle
Select Vehicle Options to Filter Results
Select Trim
Select Engine
Diagram (1 of 1): Electrical - Fuse & Relay
2016 Ford F-150 Fuse & Relay Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description

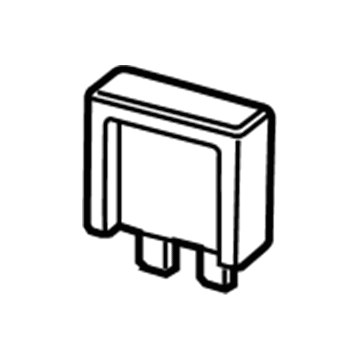

  • 5
    F2UZ-14526-N
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 15 Amp
    $1.36 $0.88
    5
    Add To Cart
  • 5
    F2UZ-14526-M
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 10 Amp
    $1.36 $0.88
    5
    Add To Cart
  • 5
    F2UZ-14526-P
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 20 Amp
    $1.36 $0.88
    5
    Add To Cart
  • 5
    F58Z-14526-A
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 30 Amp
    $5.09 $3.29
    5
    Add To Cart
  • 5
    F2UZ-14526-L
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 5 Amp
    $1.36 $0.88
    5
    Add To Cart
  • 5
    F5OZ-14526-AB
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 7.5 Amp
    $1.36 $0.88
    5
    Add To Cart
  • 5
    F58Z-14526-B
    Mini Fuse
    • Part Notes: Engine Compartment, Blade Type, 32 Volt, 25 Amp
    $1.36 $0.88
    5
    Add To Cart

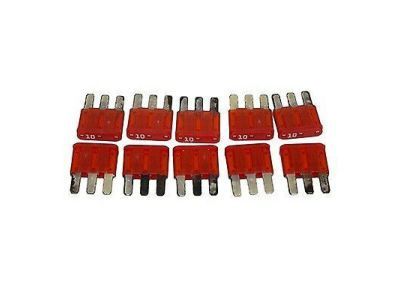

  • 6

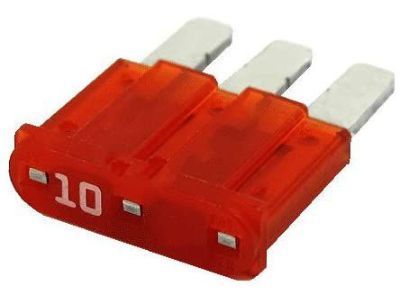

    DG9Z-14526-P
    Fuse
    • Part Notes: Engine Compartment, 3 Blade 10 Amp
    $2.55 $1.65
    10
    Add To Cart
  • 6 Ford DG9Z-14526-N Fuse
    DG9Z-14526-N
    Fuse
    • Part Notes: Engine Compartment, 3 Blade 5 Amp
    $2.55 $1.65
    10
    Add To Cart
  • 6 Ford DG9Z-14526-S Fuse
    DG9Z-14526-S
    Fuse
    • Part Notes: Engine Compartment, 3 Blade 7.5 Amp
    $2.55 $1.65
    10
    Add To Cart

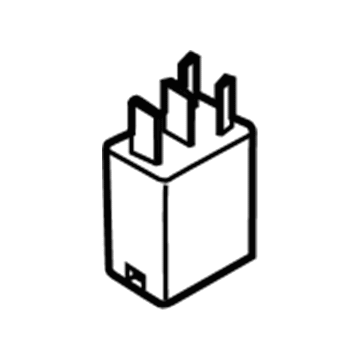

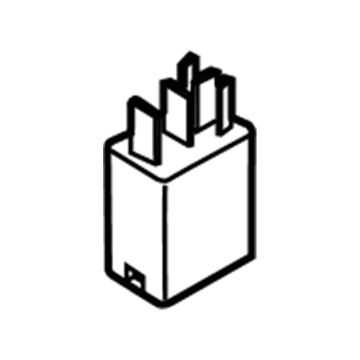

  • 10
    HU5Z-14N089-B
    Relay
    • Part Notes: Engine Compartment, 20 Amp, 4 Terminal
    $43.83 $30.90
    1
    Add To Cart
  • FL3Z-12A581-BV
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
  • GL3Z-12A581-BL
    Wire Assy
    • Fit Note: Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 11/2015-08/2016
    • Fitting Vehicle Options: 6 Cyl 2.7L, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    • Replaced By: GL3Z-12A581-CV
    $1173.33 $792.00
  • Ford FL3Z-15K867-L Wire - Parking Distance Aid Sensor
    FL3Z-15K867-L
    Wire - Parking Distance Aid Sensor
    • Part Notes: Sensor - Active Park Assist
    • Location: Passenger Side
    • Fit Note: Kansas City Plant Build, With Automated Parking System
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Crew Cab
    • Callout Name: 15K867B
    $110.17 $75.68
  • GU5Z-12A581-CA
    Wire Assy
    • Fit Note: Kansas City Plant Build
    • Production Date: 11/2015-12/2015
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
    • Callout Name: 12A581B
  • GU5Z-12A581-BG
    Wire Assy
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2015-10/2018
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
    • Callout Name: 12A581B
    $416.67 $283.75
  • GL3Z-12A581-CW
    Wire Assy
    • Fit Note: 110V Power Convertor, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 6 Cyl 2.7L, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1166.67 $787.50
  • BU5Z-14A411-E
    Wire Assy - Jumper
    • Part Notes: Temperature Sensor Jumper
    • Fit Note: Dearborn Plant Build
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 6 Cyl 3.5L Cyclone Petrol TIVCT
    • Callout Name: 14A411C
    $14.97 $10.55
  • FU5Z-12A581-AD
    Wire Assy
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2014-06/2016
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Less Phantom
    • Callout Name: 12A581B
    • Replaced By: FU5Z-12A581-AX
    $403.33 $274.67
  • Ford FL3Z-14B242-C Wiring Assy
    FL3Z-14B242-C
    Wiring Assy
    • Part Notes: From 15K867 To ECBV
    • Fit Note: Kansas City Plant Build
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
    • Callout Name: 14A411B
    $30.83 $21.74
  • Ford GL3Z-12A581-DL Wire Assy
    GL3Z-12A581-DL
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, With Level 4 Headlamps, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Four-Wheel Drive (Part Time) (Left Hand Drive), Less Phantom
    • Callout Name: 12A581A
    $1145.00 $772.88
  • GL3Z-12A581-B
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 10/2015-08/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1150.00 $776.25
  • GL3Z-12A581-AP
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, With Level 4 Headlamps, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 11/2015-08/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    • Replaced By: GL3Z-12A581-R
    $1131.67 $763.88
  • BU5Z-14A411-CC
    Wire Assy - Jumper
    • Part Notes: Injector Harness
    • Location: Driver Side
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2014-09/2016
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Less Phantom
    • Callout Name: 14A411C
    $37.00 $26.09
  • GL3Z-12A581-CR
    Wire Assy
    • Fit Note: Headlamps - Fixed DSS (LED), Headlamps - Level 5, Kansas City Plant Build
    • Production Date: 11/2015-08/2016
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Four-Wheel Drive (Part Time) (Left Hand Drive), Less Phantom
    • Callout Name: 12A581A
    • Replaced By: GL3Z-12A581-DM
    $1456.67 $983.25
  • GL3Z-12A581-D
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, With Level 4 Headlamps, Kansas City Plant Build, Less Trailer Module, Rear Axle Less Limited Slip Diff
      ...View More
    • Production Date: 09/2016-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
    • Callout Name: 12A581A
    $1250.00 $843.75
  • FL3Z-12A581-CA
    Wire Assy
    • Fit Note: Electronic Locking Differential, Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 6 Cyl 2.7L, Rear-Wheel Drive (Left Hand Drive)
    • Callout Name: 12A581A
  • FL3Z-12A581-BU
    Wire Assy
    • Fit Note: Headlamps - Fixed DSS (LED), Kansas City Plant Build
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Four-Wheel Drive (Part Time) (Left Hand Drive), Less Phantom
    • Callout Name: 12A581A
    $1270.00 $857.25
  • FL3Z-12A581-BC
    Wire Assy
    • Fit Note: Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 6 Cyl 2.7L, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1250.00 $843.75
  • FL3Z-15K867-M
    Wire - Parking Distance Aid Sensor
    • Part Notes: Sensor - Active Park Assist
    • Location: Passenger Side
    • Fit Note: Kansas City Plant Build, With Automated Parking System
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Super Cab
    • Callout Name: 15K867B
    $35.67 $25.15
  • FL3Z-12A581-AR
    Wire Assy
    • Fit Note: Electronic Locking Differential, Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
    • Callout Name: 12A581A
  • Ford FL3Z-3C221-B Wire Assy - Motor
    FL3Z-3C221-B
    Wire Assy - Motor
    • Part Notes: Power Steering Wiring
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2015-07/2017
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
    • Callout Name: 3C221
    • Replaced By: JL3Z-3C221-B
    $124.33 $85.42
  • FL3Z-12A581-BW
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
  • GL3Z-12A581-AM
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, With Level 4 Headlamps, Kansas City Plant Build, Less Trailer Module
    • Production Date: 11/2015-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    • Replaced By: GL3Z-12A581-P
    $1280.00 $864.00
  • Ford GL3Z-12A581-R Wire Assy
    GL3Z-12A581-R
    Wire Assy
    • Fit Note: 110V Power Convertor, Headlamps - Halogen, With Level 4 Headlamps, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1131.67 $763.88
  • BU5Z-14A411-C
    Wire Assy - Jumper
    • Part Notes: Jumper Harness That Connects To Both Knock Sensors
    • Fit Note: Kansas City Plant Build
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
    • Callout Name: 14A411C
    • Replaced By: GU5Z-14A411-B
    $33.17 $23.38
  • GL3Z-12A581-CV
    Wire Assy
    • Fit Note: Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 6 Cyl 2.7L, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1173.33 $792.00
  • FL3Z-15K867-N
    Wire - Parking Distance Aid Sensor
    • Part Notes: Sensor - Active Park Assist
    • Location: Driver Side
    • Fit Note: Kansas City Plant Build, With Automated Parking System
    • Production Date: From 10/2014
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Crew Cab
    • Callout Name: 15K867B
    $36.67 $25.85
  • FL3Z-12A581-BD
    Wire Assy
    • Fit Note: 110V Power Convertor, Kansas City Plant Build, Trailer Tow Lighting Module
    • Production Date: 02/2015-11/2015
    • Fitting Vehicle Options: 6 Cyl 2.7L, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1246.67 $841.50
  • GL3Z-12A581-AR
    Wire Assy
    • Fit Note: Headlamps - Fixed DSS (LED), Headlamps - Level 5, Kansas City Plant Build
    • Production Date: 10/2015-08/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
  • GL3Z-12A581-C
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Less Trailer Module, Rear Axle Less Limited Slip Diff
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
    • Callout Name: 12A581A
    $1245.00 $840.38
  • BU5Z-14A411-DC
    Wire Assy - Jumper
    • Part Notes: Injector Harness
    • Location: Passenger Side
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2014-09/2016
    • Fitting Vehicle Options: 6 Cyl 3.5L GTDI, Less Phantom
    • Callout Name: 14A411C
    $34.67 $24.44
  • GL3Z-12A581-Q
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Trailer Tow Lighting Module
    • Production Date: 08/2016-09/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1403.33 $947.25
  • GL3Z-12A581-N
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Less Trailer Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
    • Callout Name: 12A581A
    $1286.67 $868.50
  • FU5Z-12A581-P
    Wire Assy
    • Fit Note: Kansas City Plant Build
    • Production Date: 10/2014-05/2017
    • Fitting Vehicle Options: 6 Cyl 2.7L
    • Callout Name: 12A581B
    • Replaced By: FU5Z-12A581-NQ
    $383.33 $261.05
  • GL3Z-12A581-E
    Wire Assy
    • Fit Note: Headlamps - Halogen, Kansas City Plant Build, Less Power Convertor, Rear Axle Less Limited Slip Diff, Trailer Tow Lighting Module
    • Production Date: 08/2016-10/2016
    • Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
    • Callout Name: 12A581A
    $1081.67 $730.13
