2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

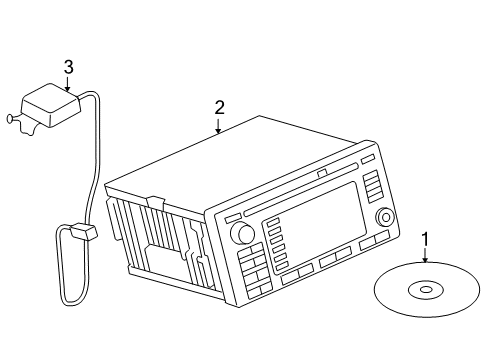

- 1.Electrical - Navigation System Components (Base,Premier)
- 2.Electrical - Navigation System Components (Hybrid)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$180.86 $176.02
- 3
$37.90 $26.721 - 3
- $54.77 $38.281
ER3Z-10E987-AA

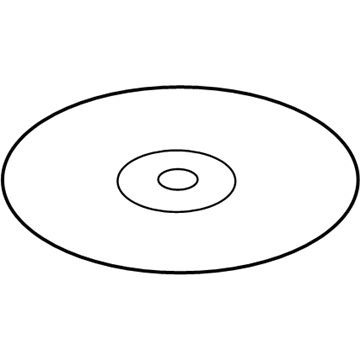

Disc - Navigation Map- Part Notes: Coverage Includes Continental United States, Alaska, Hawaii, Canada, Puerto Rico, US Virgin Islands And Mexico , For Multimedia Systems QC Issues Contact The Ford Electronics Service Group At fesg@ford.com, Navigational DVD , Order From Audio/Multimedia Center Online Ordering System Using The Online 1878 Form
- Fit Note: With Navigation System
- Production Date: 12/2008-04/2012
- Callout Name: 10E987
- Replaced By: ER3Z-10E987-BA
$148.82 $144.84
7L3Z-18813-A

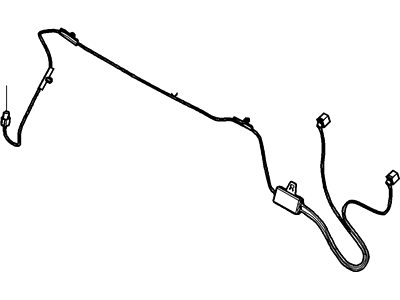

Kit - Aerial- Part Notes: Black Coated
- Fit Note: AM/FM Stereo/6 CD/Navigation System, With Satellite Radio Reception
- Production Date: 09/2007-05/2009
- Callout Name: 18813
- Replaced By: MCPZ-18813-D
$42.60 $30.03
9L3Z-14D212-B
Module- Part Notes: Accessory Protocol Interface Module (Sync Module) , Hardware Level 14D203 , Order From Audio/Multimedia Center Online Ordering System Using The Online 1878 Form , Refer To OASIS Website's APIM Tab For Hardware Level , Refer to TSB 09-11-08 For SYNC 911 Assist And Vehicle Health Report (VHR) Software Upgrade Installation , Version 1
- Fit Note: With Sync
- Production Date: 06/2008-12/2008
- Callout Name: 14D212
- Replaced By: 9L3Z-14D212-BE
$504.31 $429.29
-W505943-S424
Screw- Part Notes: 4 X 12MM
- Fit Note: Less Navigation System, With Satellite Radio Reception
- Production Date: 01/2007-04/2012
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: HS2
$10.00 $5.88
-W504692-S424
Screw - Special- Part Notes: M5 x 8 T25 , SCREW
- Fit Note: Less Navigation System, With Satellite Radio Reception
- Production Date: 01/2007-04/2012
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: HS5
$17.80 $10.46
9L3Z-10E893-B

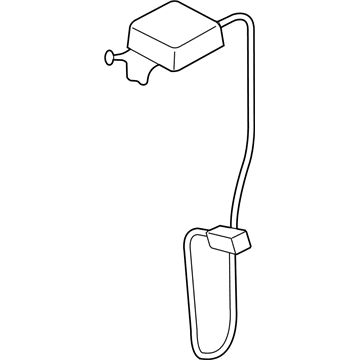

Aerial Assy - Gps- Part Notes: GPS/Satellite Antenna , Incl. Attaching Hardware , Includes Sealing Gasket
- Fit Note: AM/FM Stereo/6 CD/Navigation System, With Satellite Radio Reception
- Production Date: 01/2009-09/2010
- Callout Name: 10E893
- Replaced By: HK4Z-10E893-B
$37.90 $26.72
-W790128-S900
Screw- Part Notes: 4.5 X 20
- Fit Note: With Sync
- Production Date: 06/2008-04/2012
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: HS1
- Replaced By: -W706805-S902
$3.25 $1.92
-W707043-S424
Nut - Union- Part Notes: M6 X 0.8 X 4.0 , Nut "U" Spring
- Fit Note: Less Navigation System, With Satellite Radio Reception
- Production Date: 01/2007-04/2012
- Callout Name: HM1
$4.25 $2.50
- -N806564-S440
Nut- Part Notes: M6 X 1.00
- Fit Note: AM/FM Stereo/6 CD/Navigation System, With Satellite Radio Reception
- Production Date: 01/2007-04/2012
- Callout Name: HN1
$3.25 $1.92
- 9L3Z-14D212-CB
Unit - Central Processing- Part Notes: Accessory Protocol Interface Module (Sync Module) , Order From Instrument Cluster Online Ordering System Using The Online 1878 Form , Version 2
- Fit Note: With Sync
- Production Date: 12/2008-08/2009
- Callout Name: 14D212
$504.31 $429.29
