4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Transmission Oil Cooler (4.6L,With 4 Speed Transmission)
- 2.Transmission Oil Cooler (4.6L,With 6 Speed Transmission)
- 3.Transmission Oil Cooler (5.4L,With 4 Speed Transmission)
- 4.Transmission Oil Cooler (5.4L,With 6 Speed Transmission)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
DL3Z-7A095-A
Transmission Cooler- Part Notes: 4.6 Liter, W/4 Speed Trans;4.6 Liter, W/6 Speed Trans;5.4 Liter, W/4 Speed Trans;5.4 Liter, W/6 Speed Trans
$163.50 $112.321
- 2

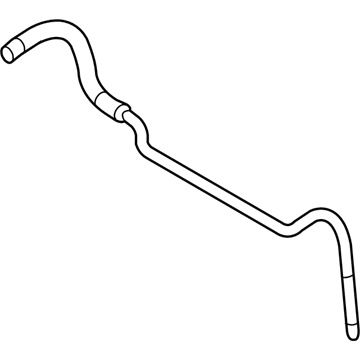

9L3Z-7C410-B
Inlet Hose- Part Notes: 4.6 Liter, W/4 Speed Trans;4.6 Liter, W/6 Speed Trans;5.4 Liter, W/4 Speed Trans;5.4 Liter, W/6 Speed Trans
$49.67 $35.021
- 3
9L3Z-7B028-F
Connector Tube- Part Notes: 4.6 Liter, W/4 Speed Trans;4.6 Liter, W/6 Speed Trans;5.4 Liter, W/4 Speed Trans;5.4 Liter, W/6 Speed Trans
$56.50 $39.49
- 4
$43.83 $30.901 - 4
9L3Z-7B028-G
Outlet Tube- Part Notes: 4.6 Liter, W/6 Speed Trans, W/Super Cooling;5.4 Liter, W/6 Speed Trans, W/Super Cooling
$57.17 $39.961 - 49L3Z-7B028-H
Outlet Tube- Part Notes: 4.6 Liter, W/6 Speed Trans, W/O Super Cooling;5.4 Liter, W/6 Speed Trans, W/O Super Cooling
$61.33 $42.871
- 5
9L3Z-7B028-G
Front Pressure Tube- Part Notes: 4.6 Liter, W/4 Speed Trans, W/Super Cooling;5.4 Liter, W/4 Speed Trans, W/Super Cooling
$57.17 $39.961 - 5
9L3Z-7B028-H
Front Pressure Tube- Part Notes: 4.6 Liter, W/4 Speed Trans, W/O Super Cooling;5.4 Liter, W/4 Speed Trans, W/O Super Cooling
$61.33 $42.871 - 5
$43.83 $30.901
- 6
$226.67 $155.721
- 6
$210.00 $144.271
- 7
$8.07 $5.691
- 7

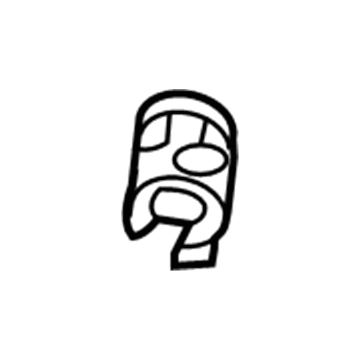

7L3Z-7D273-A
Pressure Line Assembly Connector- Part Notes: 4.6 Liter, W/4 Speed Trans;5.4 Liter, W/4 Speed Trans
$60.00 $41.941
- 8

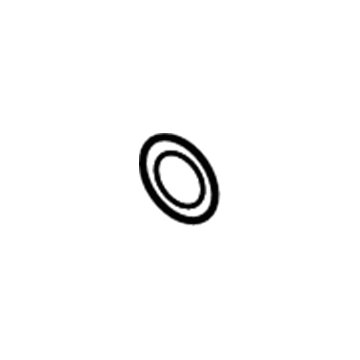

7L1Z-7J227-A
Cooler Pipe O-Ring- Part Notes: 4.6 Liter, W/6 Speed Trans;5.4 Liter, W/6 Speed Trans
- Replaced By: LJ9Z-7J227-A
$10.09 $6.521

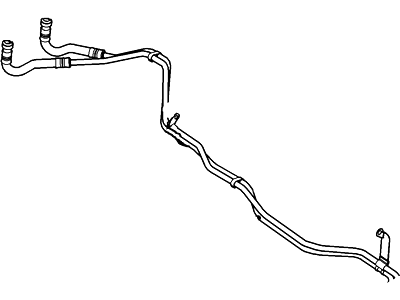

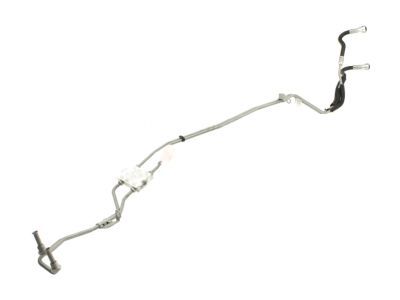

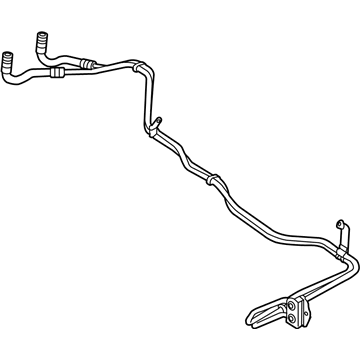

9L3Z-7R081-A
Tube Assy- Part Notes: Complete Inlet And Outlet Tube Assy
- Fit Note: With Super Engine Cooling System
- Production Date: 08/2008-07/2009
- Fitting Vehicle Options: 6-Speed Automatic Transmission (6R80)
- Callout Name: 7R081
- Replaced By: AL3Z-7R081-E
$226.67 $155.72

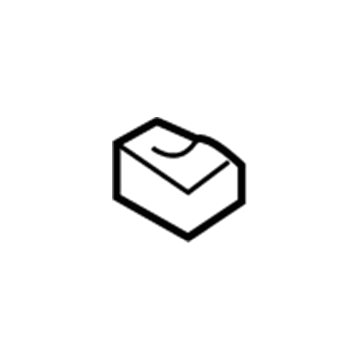

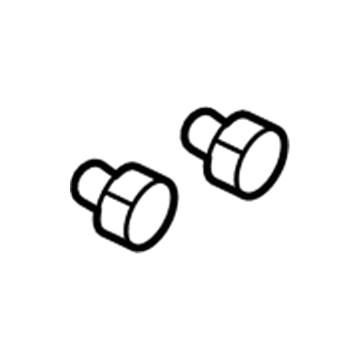

XC3Z-7B155-G
Filter Assy - Oil- Part Notes: 3/8" , 5/16" , Filter Only
- Fit Note: With Super Engine Cooling System
- Production Date: 11/2007-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7B155B
$50.18 $32.15

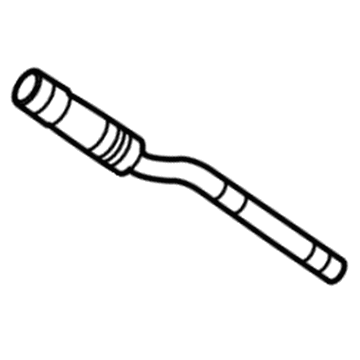

9L3Z-7B028-D
Tube - Oil Cooler- Part Notes: Outlet
- Fit Note: With Super Engine Cooling System
- Production Date: 08/2008-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7B028B
- Replaced By: 9L3Z-7B028-G
$57.17 $39.96
9L3Z-7C410-A
Tube - Oil Cooler- Part Notes: Inlet
- Fit Note: With Super Engine Cooling System
- Production Date: 08/2008-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7C410
- Replaced By: 9L3Z-7C410-B
$49.67 $35.02
9L3Z-7B028-C
Tube - Oil Cooler- Part Notes: Inlet
- Fit Note: With Super Engine Cooling System
- Production Date: 08/2008-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7B028A
- Replaced By: 9L3Z-7B028-F
$56.50 $39.49
9L3Z-7B028-E
Tube - Oil Cooler- Fit Note: With Standard Engine Cooling System
- Production Date: 08/2008-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7B028B
- Replaced By: 9L3Z-7B028-H
$61.33 $42.87

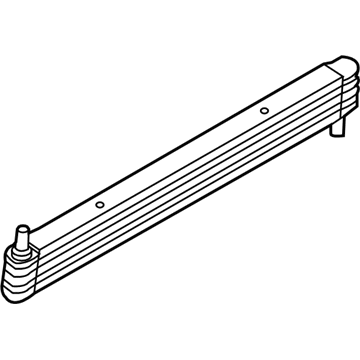

9L3Z-7A095-A
Oil Cooler Assy- Part Notes: Refer To 19702 For Bracket
- Fit Note: With Super Engine Cooling System
- Production Date: 08/2008-12/2014
- Fitting Vehicle Options: 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS
- Callout Name: 7A095
- Replaced By: DL3Z-7A095-A
$163.50 $112.32
