Diagram (1 of 1): Transmission Components
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$82.67 $56.791
- 2
$16.07 $11.331
- 3
- 3
- 3
- 3
- 3
- 3
- 4
- 5
- 5
- 6
$60.00 $38.451
$82.33 $56.56
$87.50 $60.11
C6AZ-7B066-B
Plate - Clutch Pressure- Part Notes: Direct drive clutch, forward clutch rear
Rear - 11/32" thick - 5 1/8" I.D. - 26 teeth - Location: Rear
- Callout Name: 7B066
$69.50 $48.58
-E860115-S
Retainer- Part Notes: (AQ-35-H) retaining ring - (7B066 to 7A360) - M125.1 x 1.37 - forward clutch
- Callout Name: 7B066
$3.25 $1.92
-E860117-S
Retainer- Part Notes: (AQ-35-M) retaining ring - (7B066 to 7A360) - M125.1 x 2.08 - forward clutch
- Callout Name: 7B066
$4.25 $2.50
$3.10 $1.82
F5TZ-7D100-B
Gasket- Part Notes: Gasket - lower
- Location: Lower
- Callout Name: 7D100
- Replaced By: 2L5Z-7D100-BA
$11.79 $8.32
-E800152-S72
Screw- Part Notes: (AB-119-F) screw (7A039 to 7005) hex washer head - M10 x 30 (metric), 4x2
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7A039
$3.25 $1.92
F3TZ-7A153-A
Ring Gear- Part Notes: Use with F3TZ 7A089-B plastic one-way clutch only
- Callout Name: 7A153
$84.17 $57.82
F5TZ-7A194-A

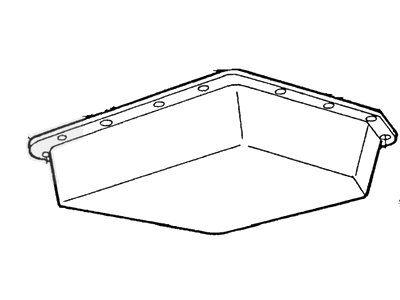

Pan Assy - Transmission Oil- Part Notes: Shallow pan, 2/W/D
- Callout Name: 7A194
- Replaced By: F69Z-7A194-AA
$82.67 $56.79
$2.42 $1.56
-377444-S
Ring - Retaining- Part Notes: (QQ-98B) 7" O.D. - .094" thick, retaining ring 7B066 to 7A360
(QQ-98B) 7" O.D. - .094" thick, retaining ring 7B066 to 7D044 - Callout Name: 7B066
$22.60 $13.28
$25.67 $18.10
- -E860127-S
Retainer- Part Notes: (AQ-35-T) retaining ring - M130.1 x 1.73 - (7B066 to 7D044/7L669)
- Callout Name: 7B066
$4.25 $2.50
$92.18 $58.05
F5TZ-7C155-A

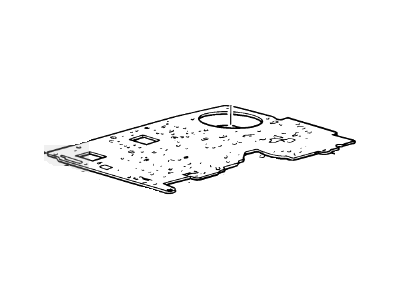

Gasket- Part Notes: Gasket - upper
- Location: Upper
- Callout Name: 7C155
- Replaced By: 2L5Z-7C155-AA
$11.27 $7.29
-N806188-S190
Connection- Part Notes: (AE-110-EA) push connect, female straight, 3/8" x 5/16" connector asy., 9.5mm tube x 6.4mm hose; type 3
- Callout Name: 9291
- Replaced By: 2F1Z-9J274-BA
$18.67 $13.16
-N802662-S2
Bolt- Part Notes: (AB-175-NE) bolt (7005 to 6007) M10 x 40mm (metric) box head
- Require Quantity: 2
- Package Quantity: 10
- Callout Name: 7005
$6.20 $3.64
$19.50 $13.75
-E860116-S
Retainer- Part Notes: (AQ-35-K) retaining ring - (7B066 to 7A360) - M125.1 x 1.73 - forward clutch
- Callout Name: 7B066
$3.25 $1.92
-E860126-S
Retainer- Part Notes: (AQ-35-R) retaining ring - M130.1 x 1.37 - (7B066 to 7D044/7L669)
- Callout Name: 7B066
$4.25 $2.50
-E860129-S
Retainer- Part Notes: (AQ-35-X) retaining ring - M130.1 x 2.44 - (7B066 to 7D044/7L669)
- Callout Name: 7B066
$3.25 $1.92
$16.58 $11.69
- $63.83 $44.62
-E860122-S
Ring- Part Notes: (AQ-40-K) retaining ring (7B067 to 7D392) 87mm (metric) - use w/all 7A398 planet assy.
- Callout Name: 7B067
$2.83 $1.67
F5TZ-7L491-AH

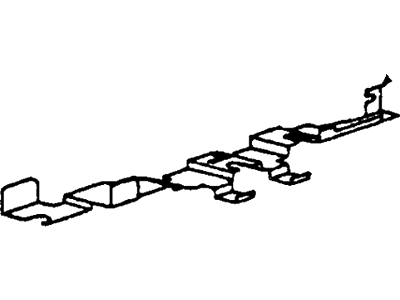

Plate- Part Notes: Bracket - solenoid - used for EPC, TCC, shift solenoids 2 & 4, 4R44E, BEFORE 7/1/99
Bracket - solenoid - used for EPC, TCC, shift solenoids 2 & 4, 4R55E - Require Quantity: 4
- Package Quantity: 1
- Callout Name: 7L491
- Replaced By: XL2Z-7L491-AA
$17.83 $12.57
-E804137-S72
Stud- Part Notes: (AW-135-D) stud - M10 x 16 + M10 x 30 - attaches (7A039 to 7005), 4x2
- Require Quantity: 2
- Package Quantity: 5
- Callout Name: 7A039
$22.60 $13.28
$88.00 $60.46
C6AZ-7B066-A
Plate - Clutch Pressure- Part Notes: Forward clutch front - triangle depression on face of plate
Front - 19/64" thick - 5 1/8" I.d. - 26 teeth - Location: Front
- Callout Name: 7B066
$29.50 $20.80
- -E860118-S
Retainer- Part Notes: (AQ-35-P) retaining ring - (7B066 to 7A360) - M125.1 x 2.44 - forward clutch
- Callout Name: 7B066
$4.25 $2.50
F5TZ-7G484-A

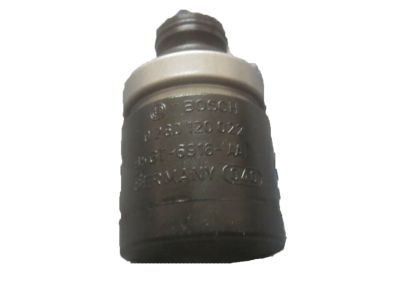

Solenoid Assy - Overdrive- Part Notes: Solenoid - shift control - #95GT-6916-AA
- Callout Name: 7G484
- Replaced By: F77Z-7G484-AB
$125.67 $86.33
F5TZ-7L491-BF

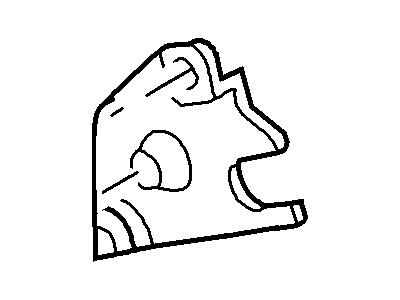

Plate- Part Notes: Bracket - solenoid - used for shift solenoids 1 & 3, 4R44E
Bracket - solenoid - used for shift solenoids 1 & 3, 4R55E - Callout Name: 7L491
- Replaced By: 5L5Z-7L491-A
$8.58 $6.05
-N802241-S
Retainer- Part Notes: (AR-51) retainer, 3/8" tube push connect
- Callout Name: 9291
- Replaced By: -N806190-S1901
$3.25 $1.92
$17.00 $9.99
$3.25 $1.92
$30.67 $21.62
$1.22 $0.79
-N802239-S
Retainer - Quick Connect- Part Notes: (AR-51-A) retainer, 5/16" tube push connect
- Callout Name: 9291
- Replaced By: -N806191-S1901
$45.65 $26.83
$13.00 $7.64
- -E860128-S
Retainer- Part Notes: (AQ-35-V) retaining ring - M130.1 x 2.08 - (7B066 to 7D044/7L669)
- Callout Name: 7B066
$4.25 $2.50
-N806187-S190
Hardware - Miscellaneous- Part Notes: (AI-110-DA) push connect, female straight 5/16" connector asy., 7.9mm tube x 6.3mm hole push connect; type 3
- Callout Name: 9291
- Replaced By: FU2Z-9J274-A
$11.52 $8.12
$157.45
$4.25 $2.50
$14.93 $10.53
$70.85
$230.00 $158.01
-E860121-S
Ring- Part Notes: (AQ-45-D) ring (7D063 to 7D064) - M39 (metric)
- Require Quantity: 2
- Package Quantity: 12
- Callout Name: 7D063
$2.22 $1.30
$12.02 $8.47
$2.26 $1.33
$25.40 $14.92
$8.17 $5.76
-N802710-S190
Retainer- Part Notes: (AR-51-C) retainer, 6.35mm push connect (duck bill)
- Callout Name: 9291
$3.25 $1.92
$3.25 $1.92
$10.00 $5.88
