Diagram (1 of 1): Electrical - Battery
1994 Ford Ranger Battery Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • C3AZ-13466-D
    Bulb
    • Part Notes: Ash tray- IND#161
      Heater control illumination - IND#161
      Heater/a/c control IND#161
      Instrument cluster - A/C control illumination - IND#161
      ...View More
    • Callout Name: 13466
    • Replaced By: 5F7Z-13466-B
    $1.55 $1.09
  • Ford E8AZ-13466-A Bulb
    E8AZ-13466-A
    Bulb
    • Part Notes: Backup, IND#3156
      Backup, corner IND#3156
      Rear, stop/turn, IND#3156
      ...View More
    • Location: Rear
    • Callout Name: 13466
    • Replaced By: F5DZ-13466-B
    $2.88 $2.03
  • E9DZ-14A163-AA
    Retainer
    • Part Notes: Retainer - push pin type - 20mm serrated pin with 60mm x 10mm wing - general use for wiring to sheet metal or blind hole retention. Use electrical tape to secure to harness. 10 per package., Service Repair Only
      ...View More
    • Callout Name: 14A163
    $1.50 $1.06
  • FOAZ-14N089-A
    Relay module
    • Part Notes: A/C WOT (Type 12)
      EEC power (Type 12)
      Fog Lamp (Type 12), w/o Add-On Fog Lamp Kits
      Fuel pump (Type 12)
      ...View More
    • Callout Name: 14N089
    • Replaced By: 5M5Z-14N089-A
    $25.00 $17.63
  • E9SZ-18808-B
    Speaker Assembly
    • Part Notes: 5 1/2" x 7 1/2" - front door, w/ or without premium sound
    • Callout Name: 18808
    • Replaced By: XF1Z-18808-AA

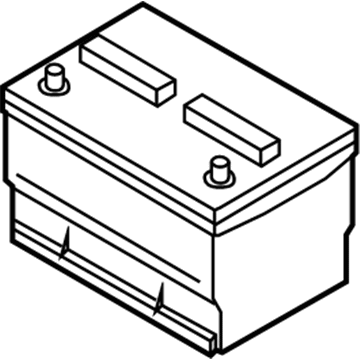

  • Ford BX-58-C Battery
    BX-58-C
    Battery
    • Part Notes: Width 7 7/32" x length at top 9 11/32" x height 6 13/16", cold cranking - 540 amp
    • Callout Name: 10655
    • Replaced By: BXT-58-A
    $199.95 $183.53
  • Ford E7ZZ-13466-C Bulb
    E7ZZ-13466-C
    Bulb
    • Part Notes: Off road lamp - IND#H-3, 4x4
    • Callout Name: 13466
    • Replaced By: F67Z-13465-AA
  • F85Z-2L373-AC
    Sensor Assy
    • Part Notes: Located in rear axle housing, used as ABS sensor
    • Callout Name: 2L373
    • Replaced By: F85Z-9E731-AB
    $0.00
  • Ford E5MY-13466-A Bulb
    E5MY-13466-A
    Bulb
    • Part Notes: #3157 marker - front - (8/94)
      Parking lamp & turn-front - IND#2458 - (8/94)
      Parking lamp and turn signal (front) - IND#2458 - (8/94)
      Rear, stop/park/sidemarker, IND#3157
      ...View More
    • Location: Rear
    • Callout Name: 13466
    • Replaced By: F4CZ-13466-A
    $5.47 $3.85
  • -N805993-S36
    Bolt
    • Part Notes: (AB-187-JM) Bolt - M10 x 1.50 x 39.0 - hex flange head - attaches starter to engine
    • Fit Note: 2.3L
    • Require Quantity: 3
    • Package Quantity: 4
    • Callout Name: 11002
    • Replaced By: -N805993-S437
    $36.90 $21.68
