1994 Ford E-150 Econoline A/C Condenser, Compressor & Lines

Part Notes: 1992-96;E150-350 Vans; 4.9l, 5.0l, 5.8l;E150-350 Vans; 7.3l Diesel, 7.5l

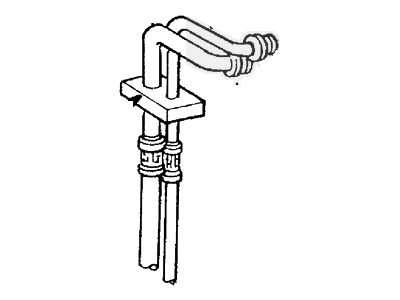

Part Notes: #2 in illustration - small a/c tube that attaches to the auxiliary evaporator thermostaic expansion valve (TXV), with high output (auxiliary) heater/AC, 3/8" O.D.

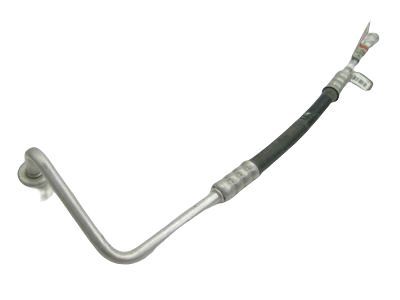

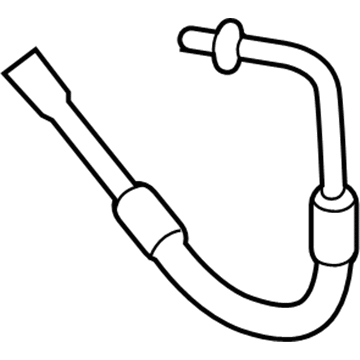

Part Notes: Hose asy - A/C, with high output (auxiliary) heat/AC,jumper tube attaches from underbody a/c line to auxiliary evaporator outlet

Part Notes: Short A/C tube that attaches from the underbody tube to the auxiliary evaporator tube, with high output (auxiliary) heat/AC, 3/8" O.D.

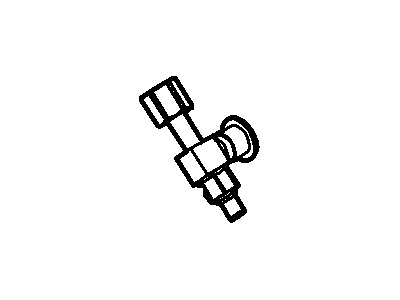

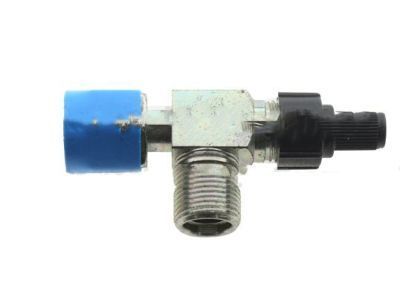

Part Notes: Valve asy - a/c high pressure, w/ heater/AC prep pack or prep pack deluxe, underbody location near driver seat

Part Notes: (BB-187-EE) - Bolt (gear to frame) - 7/16"-14 x 4 9/16"

Part Notes: (TT-40-E) Seal-teflon 15/32" x 9/16", Use on: pressure line at the gear

Part Notes: (TT-40-G) Seal-teflon .515" x .045", Use on: pressure line at the pump, return line at the gear
