Diagram (1 of 1): Engine Parts & Mounts, Timing, Lubrication System
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 2
- 2
- 5
- 5
- 6
- 6
- 7
- 8
- 9
$0.54 $0.3516
- 10
- 11
- 12$9.48 $6.128
- 14
- 14
- 14
- 15
$33.00 $23.271
- 16
- 17
$94.50 $64.92
- 19$94.50 $64.92
- 21
- 23
- 24XW7Z-6D309-DA
Bearing- Part Notes: Aerostar; Lower;Aerostar; Upper; No.1, 2;Aerostar; Upper; No.3;Aerostar; Upper; No.4
- 26
$35.83 $25.261
- 27
- 28
- 33
$11.80 $7.631
-376099-S
Obsolescence - Policy- Part Notes: (PP-73-A)-plug (cylinder block rear)-cup-3/4" , STANDARD PART
(PP-73-A)-plug (rear hole in block) -cup type-3/4" , STANDARD PART - Callout Name: 6026
- Replaced By: -W720518-S437U
$2.13 $1.25
-87837-S
Plug - Engine- Part Notes: r/b F1ZZ 6026-B (P-15)-plug (drain holes in block and oil gallery)- pipe-hex. countersunk-1/4"-18 , STANDARD PART
r/b F1ZZ 6026-B (P-15)-plug (oil gallery and drain holes)-pipe-1/4"-18 , STANDARD PART
r/b F1ZZ 6026-B (P-15)-plug (water drain holes and front oil gallery in block)-pipe-1/4"-18 x 27/64" , STANDARD PART
r/b F1ZZ 6026-B (P-15-)-plug (water jacket, air brake compressor oil hole in block, front and rear main oil gallery)- pipe-1/4"-18 , STANDARD PART - Callout Name: 6026
- Replaced By: F1ZZ-6026-B
$3.18 $2.24
C2OZ-6065-B
Bolt - Cylinder Head- Part Notes: 7/16"-14 x 3 15/16"
7/16"-14 x 3 29/32" - Require Quantity: 14
- Package Quantity: 10
- Callout Name: 6065
- Replaced By: F3ZZ-6065-B
$6.93 $4.89
-388551-S2
Stud 5/16-18-18X3.34 Hex Shield- Part Notes: (WW-135-C)-Stud (cover to blk.)-5/16"-18-18 x 3 5/16" , STANDARD PART
- Callout Name: 6019
C8SZ-6065-B
Bolt - Hex.Head- Part Notes: 9/16"-12 x 4 3/8"
- Require Quantity: 10
- Package Quantity: 4
- Callout Name: 6065
$30.29 $21.36
$94.50 $64.92
E9DZ-6345-D
Bolt - Hex.Head- Part Notes: M11 x 1.5 x 82.5mm
- Require Quantity: 4
- Package Quantity: 2
- Callout Name: 6345
$15.50 $9.11
E6DZ-6A527-A
Bolt - Hex.Head- Part Notes: M8 x 36 metric
- Require Quantity: 12
- Package Quantity: 4
- Callout Name: 6A527
-N803539-S309
Screw And Washer Assy- Part Notes: (AB-194-K) screw (att. 9424)-M8 x 1.25 x 55.0 socket head cap , STANDARD PART
- Require Quantity: 8
- Package Quantity: 4
- Callout Name: 9424
- Replaced By: -N803539-S437
$15.90 $9.34
$18.73 $13.21
D9HZ-6345-A

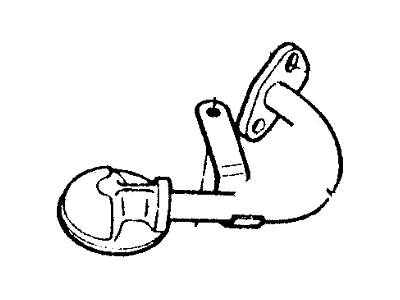

Bolt- Part Notes: Stud-3/8" - 16-1/2"-13 x 5"-hex shoulder- also attaches oil pump screen tube and cover assy.
- Callout Name: 6345
$34.42 $24.26
$10.67 $7.52
D7AZ-6026-A
Plug - Engine- Part Notes: (Core holes in block or hd.)-1 1/2" O.D.
(Core holes in block or in head) - 1.50" O.D.
(Core holes in block) cup 1.50" O.D.
Std. 1.50" O.D. - Require Quantity: 5
- Package Quantity: 2
- Callout Name: 6026
- Replaced By: F6AZ-6026-BA
$5.73 $4.04
E6DZ-6026-A
Plug - Engine- Part Notes: (Used in cyl. hd.) cup 1.26" O.D.
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 6026
$2.50 $1.76
B8A-6378-A
Nut - Hex. - Self-Locking- Part Notes: 21/32" I.D. x 1 3/4" O.D. x 7/32" thick
- Callout Name: 6378
- Replaced By: F67Z-6378-AA
$16.67 $11.75
E9DZ-6730-B
Plug - Oil Drain- Part Notes: Incl. gasket-r/b F3DZ 6730-A
Metric-r/b F3DZ 6730-A - Callout Name: 6730
- Replaced By: F75Z-6730-BA
$5.95 $4.19
-379299-S2
Nut - Hex.- Part Notes: (MM-169-J)-Nut (flywheel to converter) 3/8-24" , STANDARD PART A/T
(MM-169-J)-nut (flywheel to converter)-3/8"-24 , STANDARD PART AOT - Require Quantity: 4
- Package Quantity: 4
- Callout Name: 6375
- Replaced By: -378941-S441
$3.25 $1.92
$10.65 $6.26
$60.73 $38.91
$11.33 $6.65
C4AZ-6629-A
Washer - Special- Part Notes: 1/4" I.D. x 5/16" O.D.-use with 5/16" shaft
- Callout Name: 6629
$2.82 $1.99
$88.67 $60.91
-375055-GS
Key - Crankshaft And Camshaft- Part Notes: Key (pulley to crankshaft)-woodruff
- Callout Name: 6306
$4.33 $2.55
$10.00 $5.88
$94.50 $64.92
E7TZ-6731-A

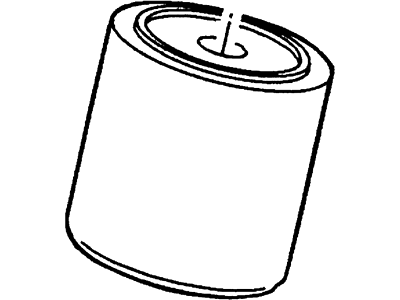

Kit - Element & Gasket - Oil Filter- Part Notes: "From 9/18/86" , *FL-1-HP
- Callout Name: 6731
- Replaced By: D9AZ-6731-A
C3AZ-12270-A
Clamp- Part Notes: *DZ-410 , CID:171,300
*DZ-410 , CID:302,351,400,460 - Callout Name: 12270
$58.55 $37.51
E7TZ-6065-B
Bolt - Hex.Head- Part Notes: "From 2/2/87" , 9/16"-12 x 5 1/8"
- Require Quantity: 10
- Package Quantity: 4
- Callout Name: 6065
$22.58 $15.92
D1FZ-6397-B
Sleeve - Guide- Part Notes: Align clutch pressure plate to flywheel
CLUTCH TO FLYWHEEL , M/T - Require Quantity: 3
- Package Quantity: 5
- Callout Name: 6397
$3.37 $2.37
EAD-6397-B
Sleeve - Guide- Part Notes: To flywheel housing
to flywheel housing-1/2" x 1 - Require Quantity: 2
- Package Quantity: 4
- Callout Name: 6397
$2.90 $2.04
$7.42 $5.23
$13.00 $7.64
$41.67 $29.38
$6.75 $4.76
-AWSF-44C
Spark Plug- Part Notes: CID:140 EFI
- Require Quantity: 4
- Package Quantity: 1
- Callout Name: 12405
- Replaced By: AWSF-44C-AX
$4.63 $3.27
$11.80 $7.63
E7DZ-6A528-A
Seat - Valve Rocker Arm Fulcrum- Part Notes: "From 9/30/86"
- Require Quantity: 12
- Package Quantity: 6
- Callout Name: 6A528
$14.24 $9.20
$560.00 $349.58
E69Z-8255-A
Gasket- Part Notes: CID:3.0L "From 5/2/88" , GASKET LOCATION
- Callout Name: 8575
- Replaced By: F87Z-8255-DA
$11.36 $7.34
$30.36 $19.62
E7AZ-6A892-A
Grommet - Check Valve- Part Notes: "From 2/2/87" , (Valve to cover)
(P.C.V. valve to rocker arm cover)
P.C.V. valve to cover - Callout Name: 6A892
$14.95 $10.54
$8.50 $4.99
